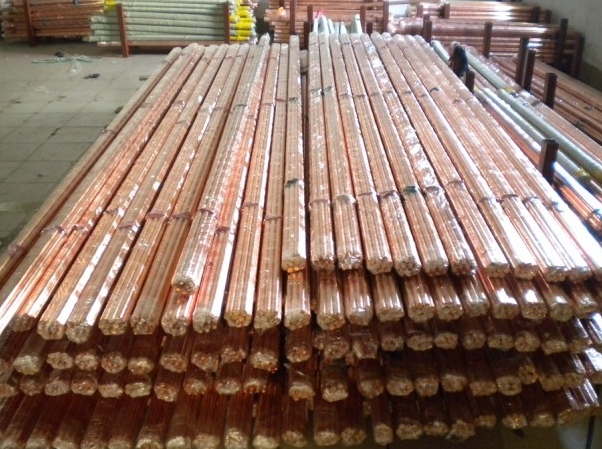

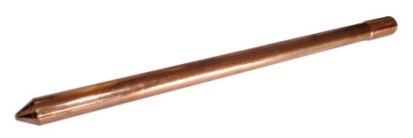

GROUNDING RODS
GROUNDING RODS
Outside Diameter Length Weight (kgs) inch mm mm feet Copper Thickness 0.25mm Copper Thickness 0.20mm Copper Thickness 0.10mm Copper Thickness 0.025mm 1/2 12.7 1.2 4 1.207 1.206 1.200 1.194 1.5 5 1.509 1.507 1.499 1.493 1.8 6 1.811 1.808 1.799 1.791 2.1 7 2.113 2.110 2.099 2.090 2.4 8 2.415 2.411 2.399 2.388 3.0 10 3.019 3.014 2.999 2.985 14.0 1.2 4 1.466 1.464 1.457 1.451 1.5 5 1.832 1.829 1.821 1.814 1.8 6 2.198 2.195 2.186 2.176 2.1 7 2.565 2.561 2.550 2.539 2.4 8 2.931 2.927 2.914 2.902 3.0 10 3.664 3.659 3.643 3.627 5/8 14.2 1.2 4 1.498 1.505 1.499 1.493 1.5 5 1.873 1.882 1.874 1.866 1.8 6 2.247 2.258 2.248 2.239 2.1 7 2.622 2.635 2.623 2.612 2.4 8 2.996 3.011 2.998 2.986 3.0 10 3.746 3.764 3.747 3.732 16.0 1.2 4 1.900 1.909 1.902 1.895 1.5 5 2.375 2.387 2.378 2.369 1.8 6 2.850 2.864 2.853 2.842 2.1 7 3.325 3.341 3.329 3.316 2.4 8 3.800 3.819 3.804 3.790 3.0 10 4.750 4.773 4.755 4.737 3/4 17.3 1.2 4 2.237 2.231 2.223 2.215 1.5 5 2.796 2.789 2.779 2.769 1.8 6 3.356 3.346 3.335 3.323 2.1 7 3.915 3.904 3.891 3.877 2.4 8 4.474 4.462 4.446 4.430 3.0 10 5.593 5.577 5.558 5.538 18.0 1.2 4 2.402 2.414 2.406 2.398 1.5 5 3.002 3.018 3.008 2.997 1.8 6 3.603 3.622 3.610 3.596 2.1 7 4.203 4.225 4.211 4.196 2.4 8 4.804 4.829 4.813 4.795 3.0 10 6.005 6.036 6.016 5.994 1 23.0 1.2 4 3.937 3.936 3.926 3.914 1.5 5 4.921 4.920 4.908 4.893 1.8 6 5.905 5.904 5.889 5.872 2.1 7 6.890 6.889 6.871 6.850 2.4 8 7.874 7.873 7.852 7.829 3.0 10 9.842 9.841 9.815 9.786 25.0 1.2 4 4.622 4.649 4.638 4.624 1.5 5 5.777 5.811 5.797 5.780 1.8 6 6.933 6.973 6.957 6.935 2.1 7 8.088 8.135 8.116 8.091 2.4 8 9.244 9.297 9.276 9.247 3.0 10 11.555 11.622 11.594 11.559
